The Two Tanks and All the Piping Are Completed
The Two Tanks and All the Piping Are Completed

Status

In partnership with the people of Chipozo, we are getting closer to their dream of having safe drinking water readily available year round. In our last report we described our design and the construction of two cement water tanks and preparations and procurement of materials for 3 km of piping over rough terrain including crossing the main road twice.   The piping has been laid from the lower tank to the upper tank and down to the 10 tapstands throughout the village!  On to Phase 3. Phase 3 will include purchase and installation of a solar array, and a pump in the lower tank to complete the system.

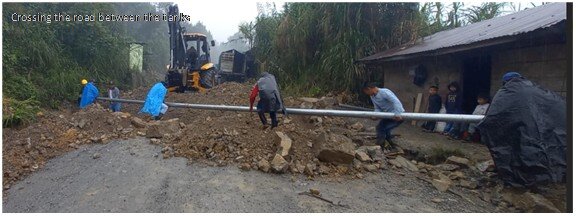

We successfully relied on the ingenuity and perseverance of our in-country NGO partner to overcome supply chain issues with the metal pipe. The municipality provided major assistance including the use of an excavator to enable running the pipe under the road and along the edge of the road through the village. EWB-RTP has generated a detailed Request for Proposal for the solar pump system, and has discussed the project with several Guatemalan vendors.

As you can see from the photos, Phase 2 was a team effort that required not only engineering and project management by Engineers Without Borders , but also a tremendous amount of volunteer labor from the community. Chipozo has a Water Committee in place to manage the finances and operation and maintenance of the system and all are anxious to see it in service. But, the start of Phase 3 depends on us acquiring the funds to purchase the solar pump. Donations to the project are critical to enabling Phase 3. Since there is no grid electricity available, solar power is the only way to pump the fresh water from the lower tank to the upper distribution tank (distance of 1100m and elevation of 170m).

Project Objective

EWB-RTP and the indigenous Mayan village of Chipozo, Guatemala are building a system to bring clean drinking water to all of Chipozo. With accessible potable water, children can spend more time in school and families more time at work instead of seeking or carrying water and dealing with water-borne disease.

Chipozo is a remote, rugged, high region with no viable drinking water sources. Our needs assessment told us families spend about 6 hours a week retrieving drinking water. The water table is much too low to build wells. People find small springs kilometers from town, get muddy water from local sources, or use rain catchment (in season). Our project will enable the community and EWB to eliminate gastrointestinal illness and redirect human resources and school time now spent obtaining clean water.



Solution

Chipozo requested help from EWB-RTP to design (and fund) a water delivery system to bring water from a distant year-round spring to the community. There is no electrical power available in the remote area near the spring. EWB-RTP designed a system that includes a collector at the spring, a holding tank next to the spring with a pump installed inside, a photovoltaic (solar panel) system to power the pump, a pipeline from the lower tank to an upper distribution tank, and gravity-fed distribution system from the tank to 10 tapstands.

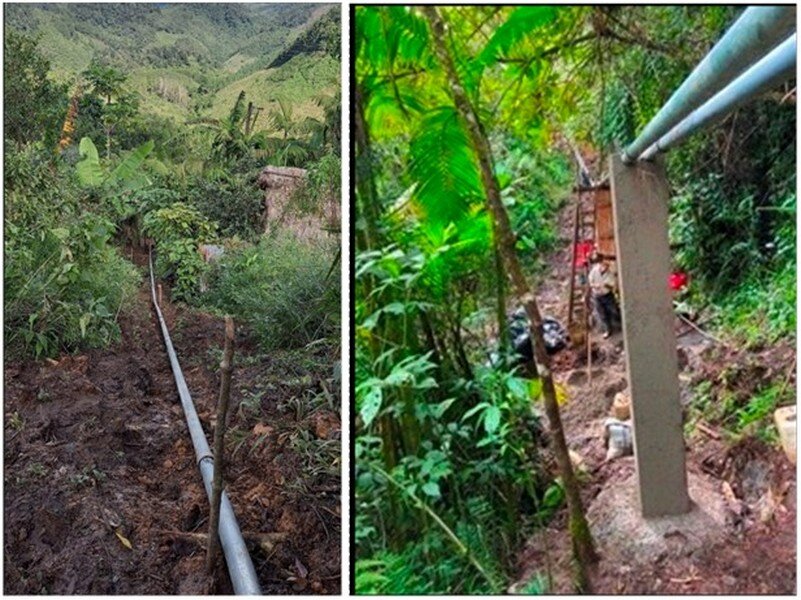

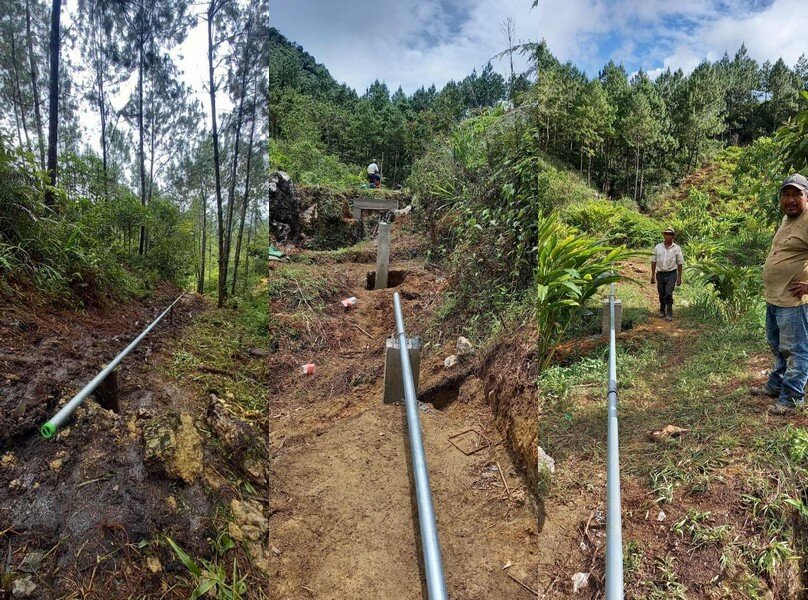

Water pipe over rough terrain
Water pipe over rough terrain

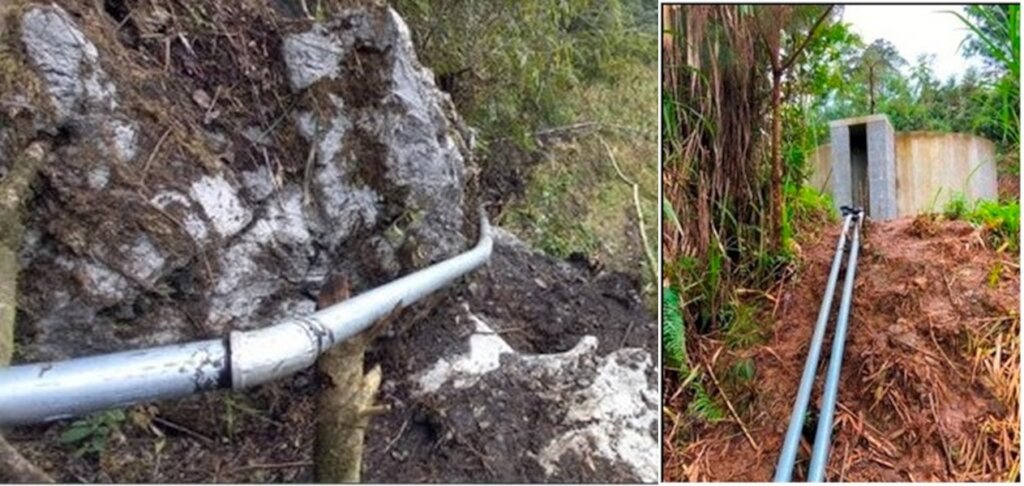

Piping to the Upper Tank
Piping to the Upper Tank
The Water Committee
The Water Committee

Links:

Share on Twitter Share on Facebook

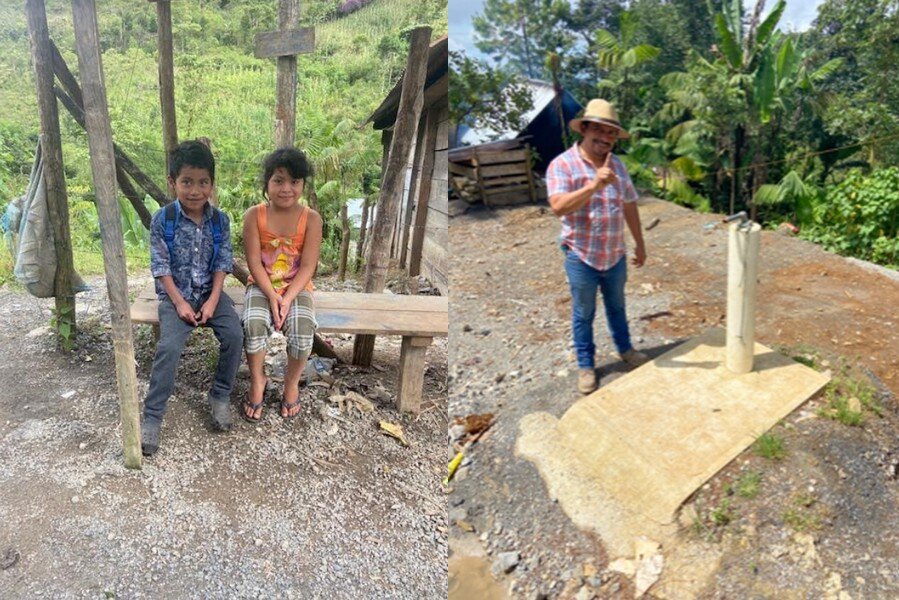

One of the Tapstands
One of the Tapstands

We are pleased to let you know how much progress we have made. In partnership with the people of Chipozo, we are getting closer to their dream of having safe drinking water readily available year round.  In our last report we described our design and the construction of two cement water tanks with a huge amount of volunteer labor from the community.  Since then, 10 tapstands like the one above were installed throughout town.  One is at the school.

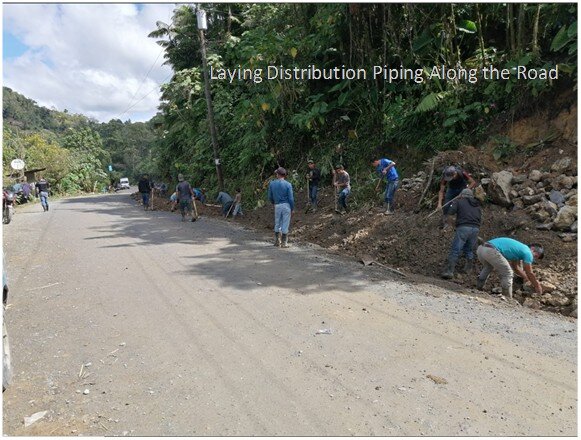

In August, a small EWB team visited the community in support of the start of Phase 2, in which we will lay kilometers of steel and PVC pipe.  We are connecting the lower tank, near the spring, to the upper distribution & storage tank; and then from the upper tank down into the community and the 10 tapstands.  The chlorination system will be installed at the end of this phase.

While visiting, we were able to walk the entire pipe route to identify trail and road crossings and map the location of all 10 tapstands.

Not too surprising, we learned we had supply chain issues in acquiring the needed pipe.   With great teamwork between the San Cristobal Municipality (who is paying for a good deal of the pipe) and EWB/CECEP (our partner NGO) we found a source who would supply most of the pipe we needed in a few weeks.  The remaining pipe is due on site in early October.  Additionally, the San Cristobal Municipality offered Chipozo their excavator for laying some of the below-ground pipe.  This will be a big help in the latter parts of Phase 2.

We had a very important and successful meeting with the Chipozo Water Committee.  Important topics included progress of the water system rules for individual family use and payment; initial planning for the Water Committee’s operation and maintenance of the system, and helping the Water Committee set the expectations of the community concerning what the new system will and will not do.  The Water Committee will conduct a house to house survey of all the families involved to gather some more information and make sure every family has the opportunity to participate.  The committee will relay the information to everyone during their all-community meetings.

Looking forward, we have issued a detailed technical and commercial Request for Proposal for the solar-powered pumping system.

Donations to the project are critical to enabling Phase 3; purchase and installation of solar panels, electrical control system and pump.  Since there is no grid electricity available, this is the only way to get the fresh water from the lower tank to the upper distribution tank (distance of 1100m and elevation of 170m).



Project Objective

EWB-RTP and the indigenous Mayan village of Chipozo, Guatemala are building a system to bring clean drinking water to all of Chipozo. With accessible potable water, children can spend more time in school and families more time at work instead of seeking or carrying water and dealing with water-borne disease.

Chipozo is a remote, rugged, high region with no viable drinking water sources.  Our needs assessment told us families spend about 6 hours a week retrieving drinking water.  The water table is much too low to build wells. People find small springs kilometers from town, get muddy water from local sources, or use rain catchment (in season). Our project will enable the community and EWB to eliminate gastrointestinal illness and redirect human resources and school time now spent obtaining clean water.



Solution

Chipozo requested help from EWB-RTP to design (and fund) a water delivery system to bring water from a distant year-round spring to the community.  There is no electrical power available in the remote area near the spring.  EWB-RTP designed a system that includes a collector at the spring, a holding tank next to the spring with a pump installed inside, a photovoltaic (solar panel) system to power the pump, a pipeline from the lower tank to an upper distribution tank, and gravity-fed distribution system from the tank to 10 tapstands.

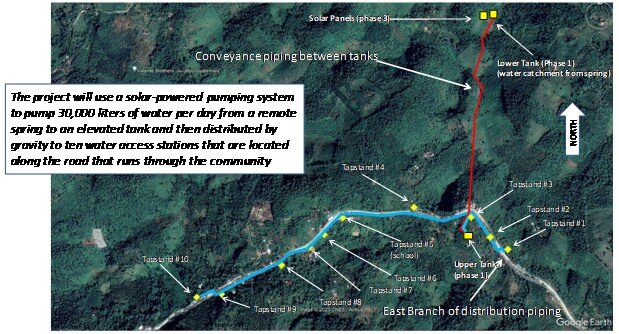

Pumping and Distribution System
Pumping and Distribution System

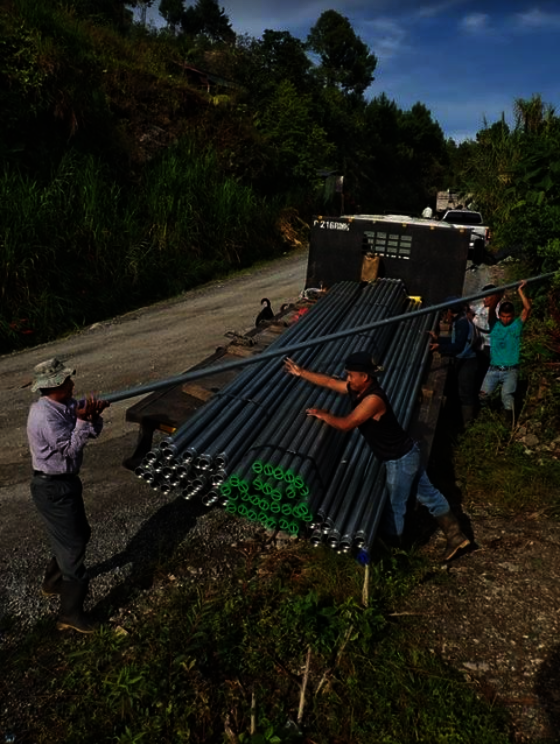

Delivery Day
Delivery Day
The Construction
The Construction
Chipozo / CECEP Team
Chipozo / CECEP Team
Chipozo Water Committee
Chipozo Water Committee
EWB, Sucy (CECEP)  and Vice Mayor of San Cristobal
EWB, Sucy (CECEP) and Vice Mayor of San Cristobal

Links:

Share on Twitter Share on Facebook
The Future of Chipozo
The Future of Chipozo

We are pleased to let you know how much progress we have made. In partnership with the people of Chipozo, we are getting closer to their dream of having safe drinking water readily available year round.

Phase 1 of our project is complete. We finished the construction of the two water tanks: one at the natural spring water source and a distribution tank above the village. This required:

  • Over 1200 volunteer hours of community members carrying building materials to the construction site and using machetes to clear the rugged terrain of the pipeline from the lower tank to the upper tank
  • Assistance from paid local masons
  • 20% of the project cost contributed by the community
  • Establishment of the Chipozo Water Committee that is comprised of locally elected village members
  • Engineering and project management expertise and sustained fundraising from EWB-RTP volunteers

We have also built 10 tapstands throughout the village and close to the school for easy community access. We look forward to our continued collaboration of the newly elected Chipozo Water Committee and the Chipozo ruling council (COCODE) in order to define the rules of water use and management once the system is complete. We have also generated a detailed technical and commercial Request for Proposal for the solar-powered pumping system

Phase 2 will begin very shortly. We will lay the steel and PVC pipe and install pipe supports from the lower tank to the upper distribution tank, and down from the distribution tank to the tapstands located throughout the community. We will install the chlorination system at the end of this phase.



Donations to the project are critical to enabling Phase 3; purchase and installation of solar panels, electrical control system and pump. Since there is no grid electricity available, this is the only way to get the fresh water from the lower tank to the upper distribution tank (distance of 1100m and elevation of 170m).



Project Objective

EWB-RTP and the indigenous Mayan village of Chipozo, Guatemala are building a system to bring clean drinking water to all of Chipozo. With accessible potable water, children can spend more time in school and families more time at work instead of seeking or carrying water and dealing with water-borne disease.

Chipozo is a remote, rugged, high region with no viable drinking water sources. Our needs assessment told us families spend about 6 hours a week retrieving drinking water. The water table is much too low to build wells. People find small springs kilometers from town, get muddy water from local sources, or use rain catchment (in season). Our project will enable the community and EWB to eliminate gastrointestinal illness and redirect human resources and school time now spent obtaining clean water.



Solution

Chipozo requested help from EWB-RTP to design (and fund) a water delivery system to bring water from a distant year-round spring to the community. There is no electrical power available in the remote area near the spring. EWB-RTP designed a system that includes a collector at the spring, a holding tank next to the spring with a pump installed inside, a photovoltaic (solar panel) system to power the pump, a pipeline from the lower tank to an upper distribution tank, and gravity-fed distribution system from the tank to 10 tapstands.

Water Board
Water Board

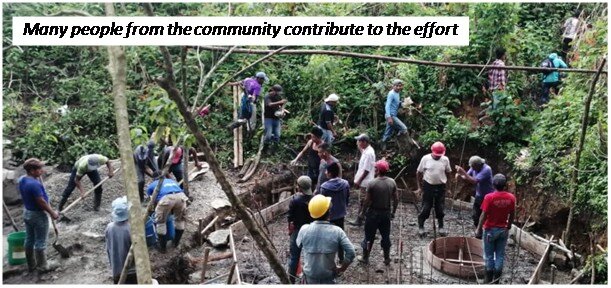

Our Partners Hard at Work
Our Partners Hard at Work

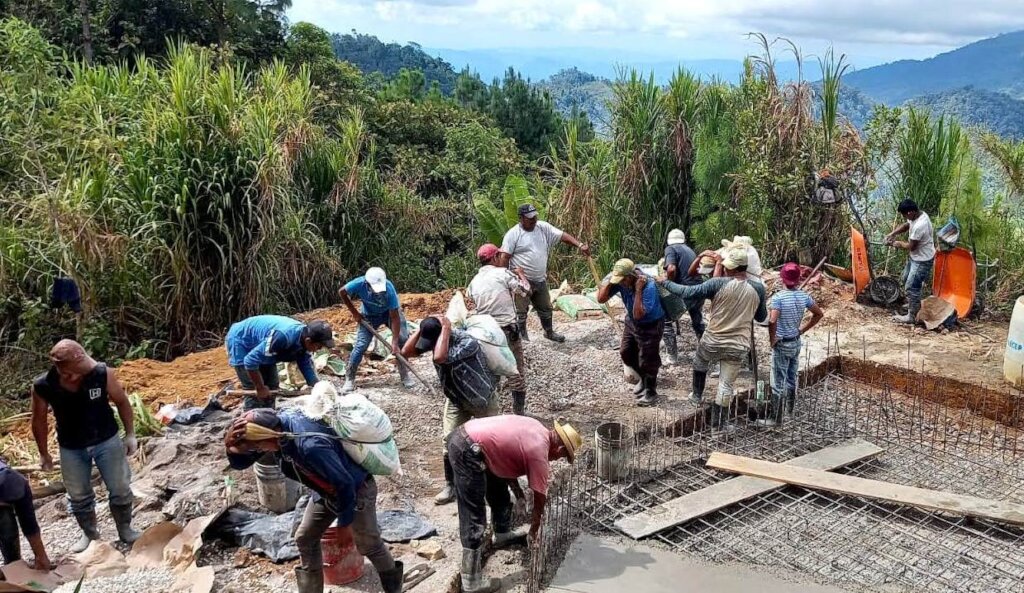

Upper Tank Under Construction
Upper Tank Under Construction
