Sustainable Housing for Rural Families in Africa

A report by experts at the London office of Environmental Resources Management (ERM), based on data provided by AVN staff in Boromo, indicates that a typical NV house of 25m2 floor space makes a saving of 2.0 tonnes of CO2- equivalents (CO2e) compared to the available alternative construction methods. Since the start of the AVN ’Earth roofs in the Sahel’ programme, one can estimate total savings of over 2,000 tonnes of CO2e. So the AVN Program, building houses with a very low 'carbon footprint' is making a small, but significant positive impact on the environment - an impact which will strengthen as the Program expands...

You can read below the summary report by ERM on the carbon footprint of NV houses.

SUMMARY

" A streamlined high-level carbon footprint assessment has been undertaken for AVN comparing production of four different housing types of 25m2 in size and providing a comparison to the production of Nubian Vault (NV) houses. Environmental Resources Management (ERM), a leading global provider of sustainability consulting and assurance services, has provided AVN with a pro-bono assessment of the carbon impact of the NV construction technique. Using data on village houses of 25 m2 provided by AVN field staff in Boromo, Burkina Faso, the calculations suggest that each NV house built can result in savings of approximately 2 tonnes of CO2 equivalents (CO2e) as compared to the current alternatives.

The carbon footprint of an NV house of 25 m2 is orders of magnitude lower than the alternatives, primarily due to the use of natural resources from surrounding areas in its construction and its extended lifetime. The approximate footprint of each housing type is: - 40 kg CO2e for an NV house (50 year lifetime) - 4,600 kg CO2e for a concrete wall + metal roof house (25 year lifetime) - 2,000 kg CO2e for an earth wall + metal roof house (10 year lifetime) - 700 kg CO2e for a traditional earth + timber roof house (10 year lifetime).

By the end of the 2009/10 building season, NV masons will have built the equivalent of 1,000 25 m2 vaults, mainly in rural areas. This implies that the carbon savings of the VN construction method since the start of our programme can be estimated at a total savings of at least 2,000 tonnes of CO2e. In fact, the figure is probably higher, as a proportion of these vaults have been built in urban and peri-urban areas, replacing a higher percentage of ‘modern’ metal-roofed buildings with concrete and cement mortar (rather than mud brick) walls.

METHODOLOGY, ASSUMPTIONS, AND DATA LIMITATIONS

A streamlined carbon footprinting approach was employed in this study which is based upon methods outlined for undertaking life cycle assessment (LCA) studies in ISO 14040 and ISO 14044. A streamlined carbon footprint or LCA seeks to shortcut the full process by limiting the scope of the study (i.e. carbon in this case), the impacts assessed and/or by judicious use of generic data and assumptions, delivering results more quickly and using fewer resources.

The carbon footprint results and savings calculated by ERM are calculated using a high-level assessment and are useful as an indication of the carbon burden of each housing type over its lifetime. This calculation has been based on the following assumptions: · In rural areas, in the absence of NV construction, 60% of houses would normally have earth walls and sheet metal roofs, 15% would have concrete block walls, using cement mortar, and sheet metal roofs, and the remaining 25% are traditional earth wall and timber roof houses, · Metal roofs and timber roofs need replacing every 7 years, that the average lifetime of a traditional house and a house with earth walls and a sheet metal roof is 10 years, and that of a house with concrete block walls and a sheet metal roof is 25 years · The estimated lifetime of a properly maintained NV house is 50 years (the structure and solidity of the roof, combined with stronger foundations and much thicker walls, explain the longer expected lifetime as compared to the alternatives). · The carbon footprint results and savings are based entirely upon production and lifetime data provided by AVN. Variations in this data significantly effect the results. · All housing construction is assumed to be undertaken using entirely manual labour and is assigned a carbon footprint burden of zero. · All locally sourced natural materials such as earth, clay, sand, gravel, stone and water are assigned zero burden. · The maintenance on a house considers the burden of replacement materials such as sheet steel, timber and plastic lining and not that of the actual maintenance process. · Where relevant, such as for natural resources, steel or timber, recycling or reuse has been assumed for the material when disposed and the materials disposal is assigned a burden of zero. · Concrete is comprised mainly of cement, water, sand and gravel. All ingredients except cement are assumed to be sourced locally and have no burden. The concrete is based upon Portland cement and assumed to be imported. · Fasoplast is estimated as having similar production burdens to PVC and is required to be transported an estimated distance of 1000 km. · Biogenic carbon is excluded from the results. · Transport of waste material to recycling, landfill or general disposal at end-of-life isexcluded. · Lorry transport within Africa is assumed to be using a lorry size less than 16 tonnes. · Emission factors used to calculate the carbon footprint of each life cycle stage have been based upon the ICE database for construction materials & Defra transport emission factors, using characterisation factors according to the IPCC 2007 data for a 100 year time horizon. · Biogenic carbon is carbon stored or released by natural non-fossil based sources. This has been excluded from the study as sequestration and release of biogenic carbon is assumed to occur in a cycle less than the 100 year time horizon considered

REFERENCES

- Defra: 2009 Guidelines to Defra / DECC's GHG Conversion Factors for Company Reporting (http://www.defra.gov.uk/environment/business/reporting/pdf/20090928-guidelines-ghgconversion-factors.pdf) - ICE database: `University of Bath: Inventory of Carbon and Energy (ICE) Version 1.6a, Prof Geoff Hammond and Craig Jones, 2008 (https://wiki.bath.ac.uk/display/ICE/Home+Page )

ABOUT ERM

Environmental Resources Management (ERM) is a leading global provider of sustainability consulting and assurance services. They deliver innovative solutions for business and government clients, helping them understand and manage their impacts on the world around them. ERM has 137 offices in 39 countries and employs approximately 3,300 staff. The ERM Foundation was established to harness the enthusiasm and expertise of ERM’s consultants to provide pro-bono and fundraising support for environmental and carbon reduction initiatives around the world."

Links:

• Environmental Resources Management (ERM) website
• The latest news from AVN

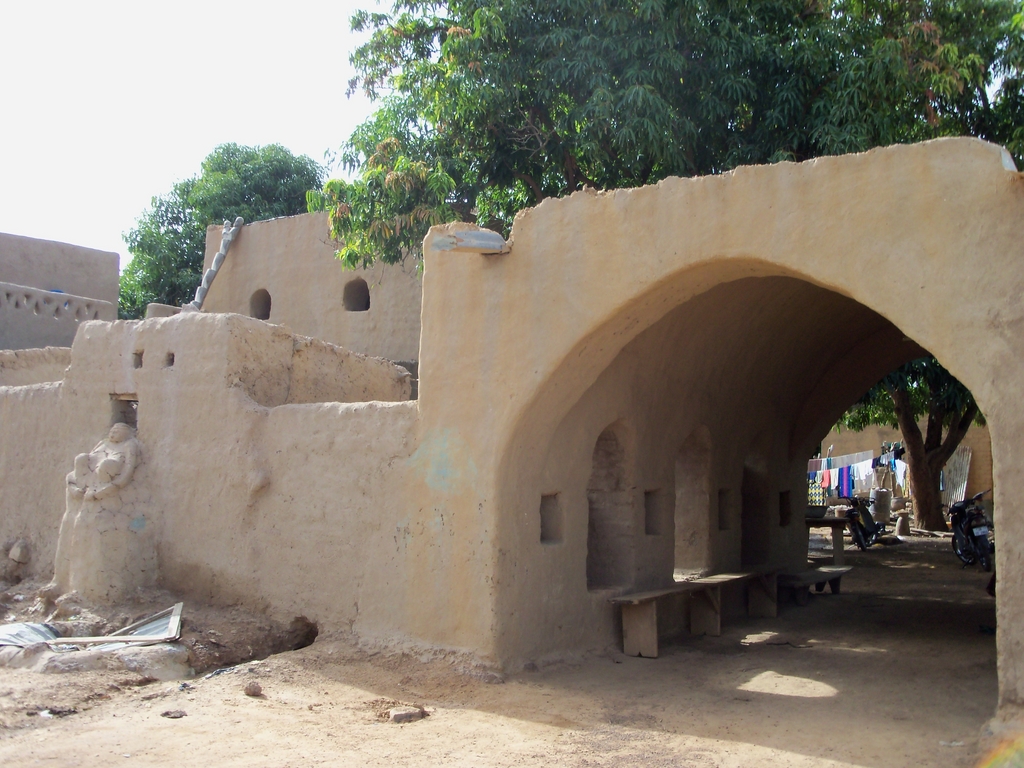

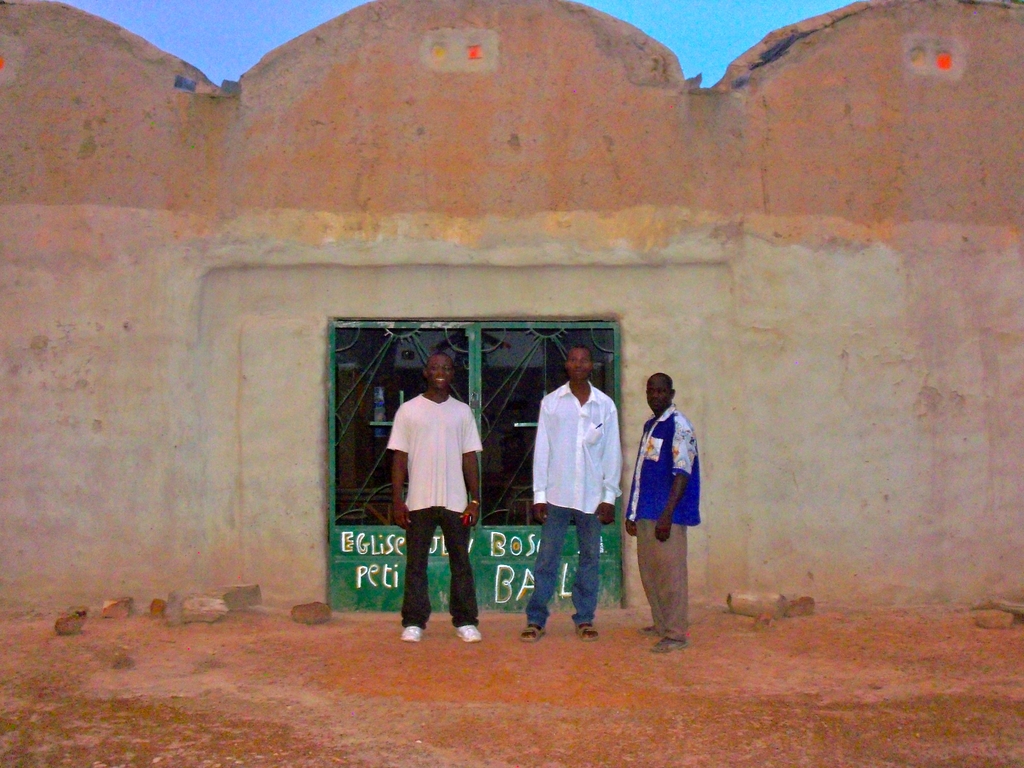

We arrived in Boromo and were picked up by Seri, the Co-Founder of the Association la Voute Nubienne (AVN), and were given our first taste what the project does when we arrived at our hotel. The hotel, owned by Seri, was created as practice buildings when Association la Voute Nubienne was working with its first group of master masons. We were later taken to see a school, church, and house, which were built in a nearby community.

The organization takes a very organic approach. They have several cultural coordinators whose job it is go into villages and work with the communities to sensitize citizens to the benefits of the Nubian style houses with earthen roofs, which include minimizing deforestation for wood roofs, saving money from importing tin roofs, and the temperature control Nubian roofs provide. After some time, if at least 5 families show interest in having a house constructed, a team of five masons will be assembled. The masons are ranked by skill level, four being a master mason. There are always two, level-one masons on the team and they are people from the village where the house is being constructed whom are interested in learning the trade. Over time they work their way up the ranking, themselves becoming master masons and potentially starting work in a new village.

Irene, the Assistant Director of AVN, told us that the end goal is for there to no longer be a need for AVN, because as more people realize the benefits of these houses and demand grows, the number of masons will be expanding as well. This model is not only meant to spread more sustainable houses, but also create jobs for those interested in learning masonry. The organization has taken a sustainable approach to introducing a new style of superior architecture to help protect the environment and improve lives of citizens of Burkina Faso.
